LED recessed downlight

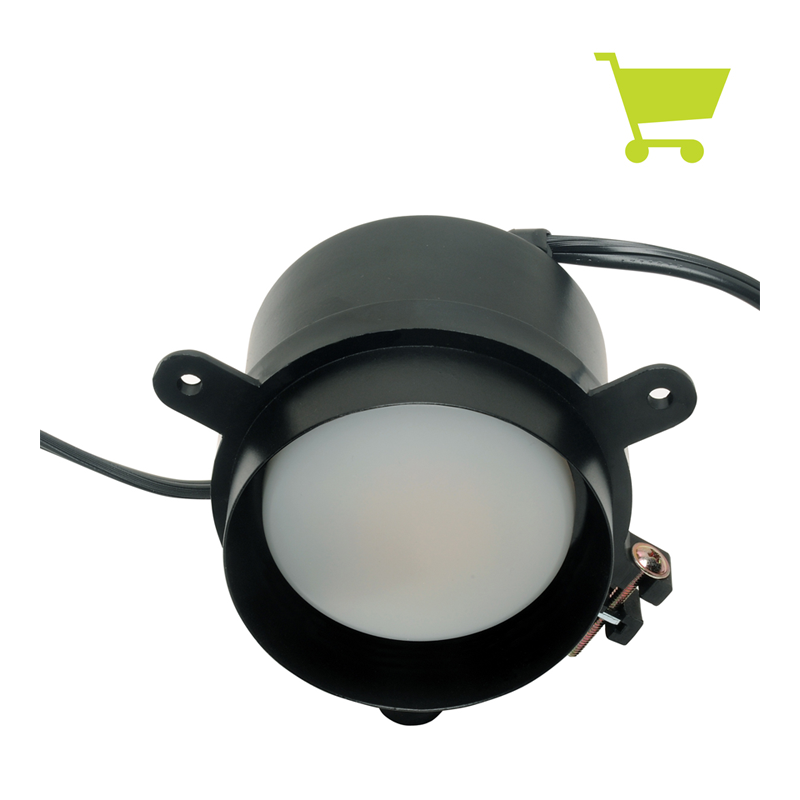

RD60 recessed downlight – LED trimless

This 8 watt, energy-saving, trimless LED downlight with integrated LED and six housing finishes to choose from, making the RD60 a solid solution for nearly any downlight application where up to 50 fixtures can be linked. It is also the perfect LED replacement fixture for the classic GR, GS, HW, or TV series. Note: The fixture uses integrated LED technology with a non-replaceable lamp (bulb).

Share this product:

Standard Features

electrical

Electrical rating: 120V, 60Hz
Power Cord: 18/2 SPT-2 (black) with male plug
Link up to 50 fixtures maximum
Compatible with Specialty Lighting On/Off Switch and Full Range Rotary Dimmer
- NOTE: Not compatible with Three Level Touch Dimmer

lighting source

LED integrated technology (non-replaceable lamp)
8 Watt
Initial lumens: 760
Beam angle: 120°

dimensions

Height: 2 7/8″
Diameter: 3 1/4″

construction

Steel

finish

Painted: black (BK), white (WH)
Plated: antique brass (AB), brushed nickel (BN), polished brass (PB), polished chrome (PC)

installation

Adjustable mounting ring pre-installed from 7/8″ from canister opening. Installation hole diameter 3 3/8″

warranty/certification

5 year warranty
UL and cUL

Product Downloads

RD60 Spec Sheet
Wiring Options for Recessed Downlights

Product Specs

RD60 -trimless (example: RD60-830-2S-PB-R)

product -

color temp -

wiring

connector style -

finish -

installation method

RD60-

830-

S-

PB-

RD60

830 3000K warm

1 10' power cord with roll
switch located 5' from
plug
2 10' power cord with roll
switch located 5' from plug
& 30" extension with
female connector
3 30" male & female
extensions
4 30" male extension

S standard
T t-shaped

AB Antique Brass
BK Black
BN Brushed Nickel
PB Polished Brass
PC Polished Chrome
WH White (minimums
may apply)

R ring mount
